| 17 units Housing | ||
| "Doctor Arce 12" | ||
| Madrid - 1998 | ||
| Architecture: | ||
| Ignacio Lliso / Julián Manzano-Monís | ||
| + José María Mateu + Juan José Carral | ||
| Published in Nueva Arquitectura nº 8 | ||
| Client: Promotora Doctor Arce 12, S.L. | ||
| Situación: Location ..... google maps | ||
| Calle del Doctor Arce, 12 - Madrid | ||
| Colaboradores: Assistants | ||
| José María Casanova | ||
| Javier Gómez Chozas | ||
| Aparejador: Surveyor | ||
| Roberto Raño + Reyes Bermejo | ||
| Técnico FCC : FCC Technician | ||
| Fernando Bernaldo de Quirós | ||
| Constructora: Construction Company | ||
| FCC Construcción, S.A. | ||
| Estructura: Structure Engineering | ||
| HCA - Juan Antonio Domínguez | ||
| Instalaciones: Service Engineering | ||
| Enrique Navarro | ||
| Fotografía: Photography | ||
| © copyright by Javier Azurmendi | ||
| Integrate the Ends. | ||

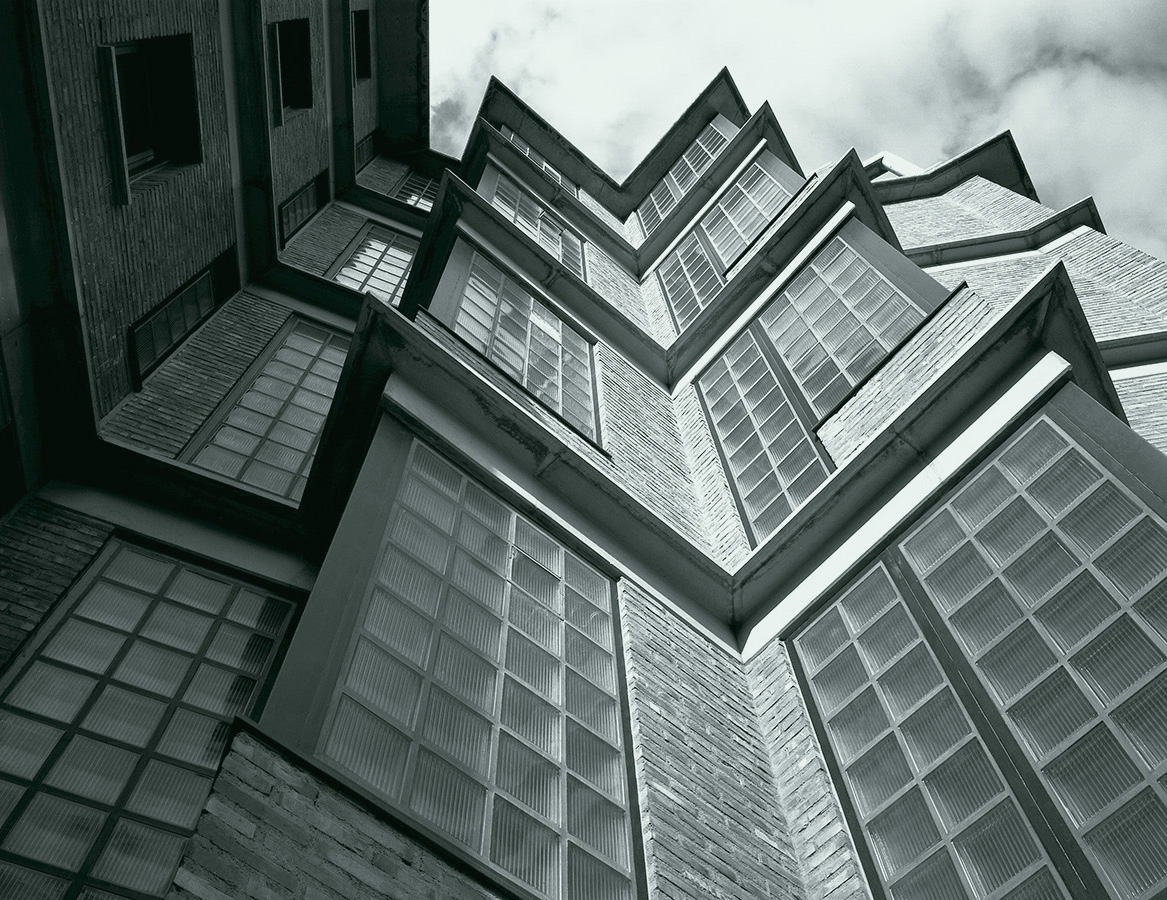

| Fusing in contrast, hand-made traditional brick as massive facade work dealing with modern architecture functional elements, rolling-projecting aluminium blinds, precast concrete, translucent “paves” walls, wood frames sun protectors, etc., old Madrid´s construction tradition with rationalist architecture of “El Viso” neighbourhood where building is placed. | ||

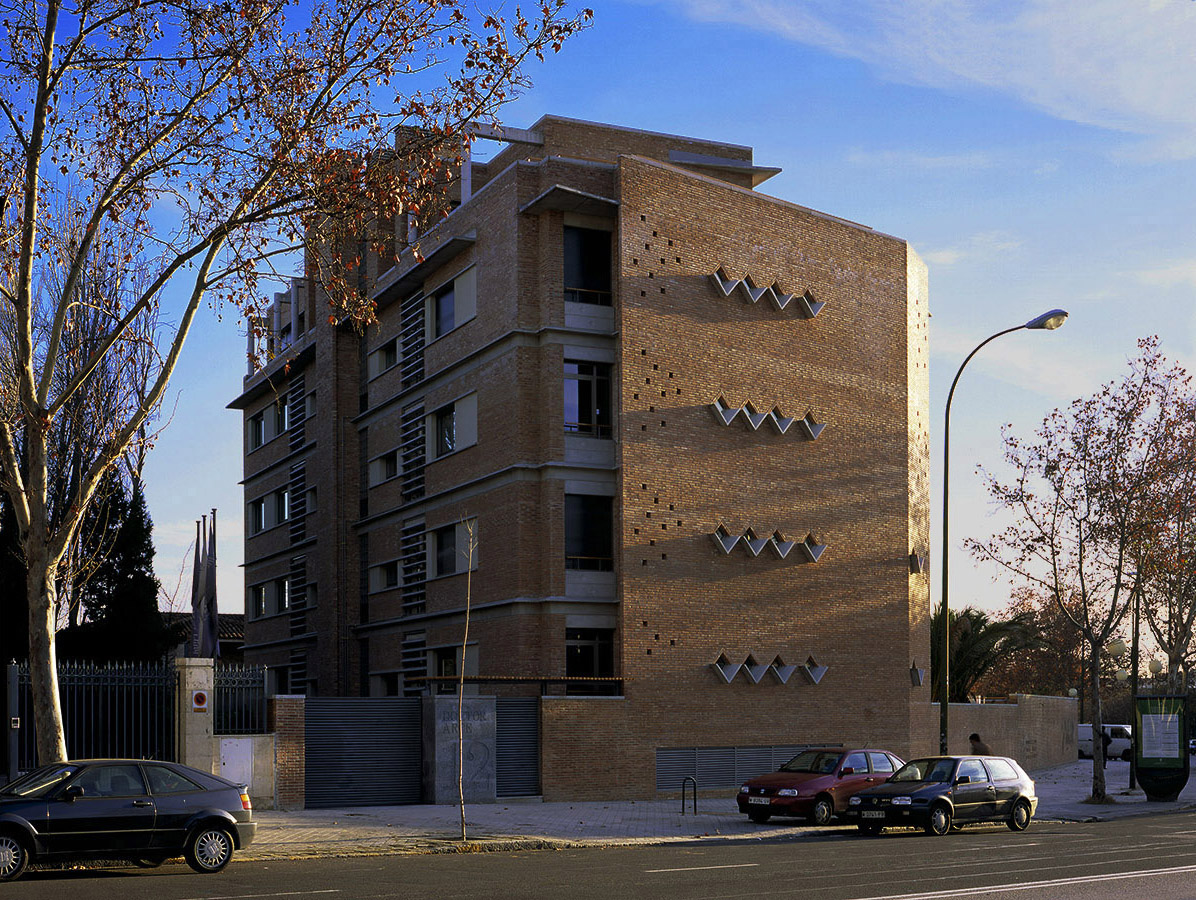

| To propose a respectful relationship with the urban patter and the street, facades extends in a brick continuous wall as a physical membrane between public and private spaces. | ||

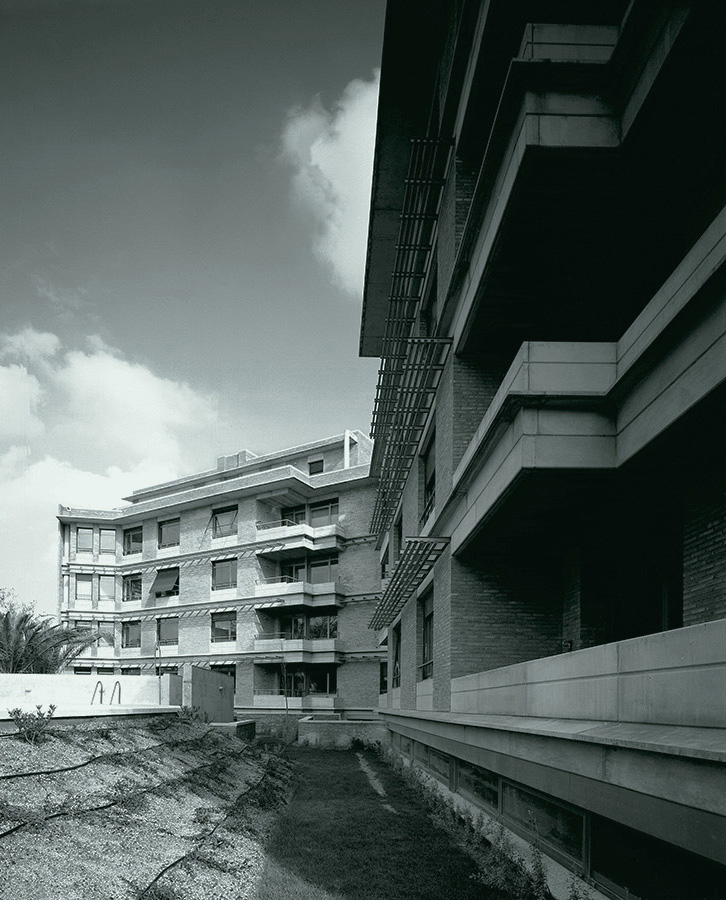

| Building´s position, in the other side, is consistent with functional and orientation requirements. We needed free space for garden and pool in the front façade and a passage in the back to solve accesses from two different streets. | ||

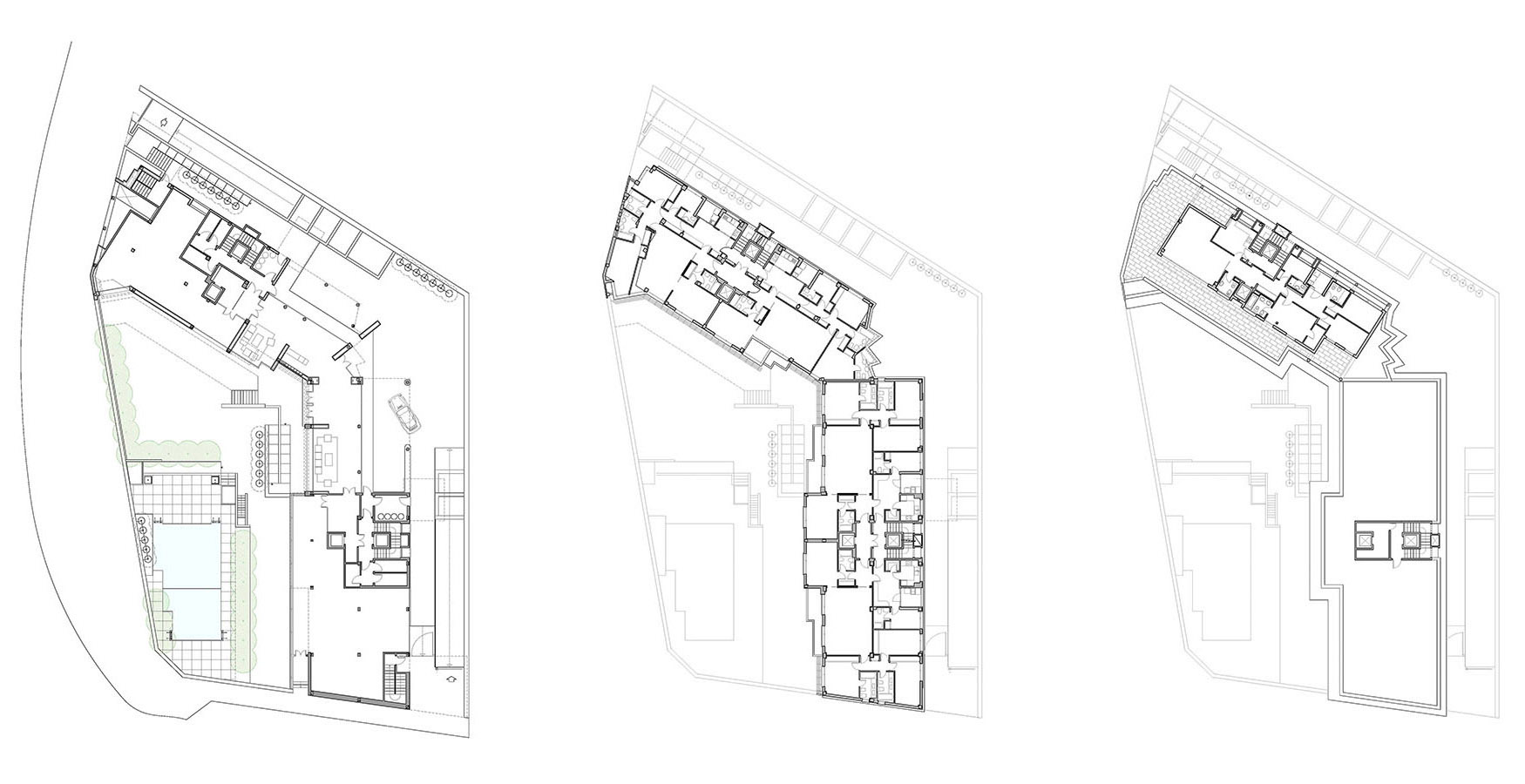

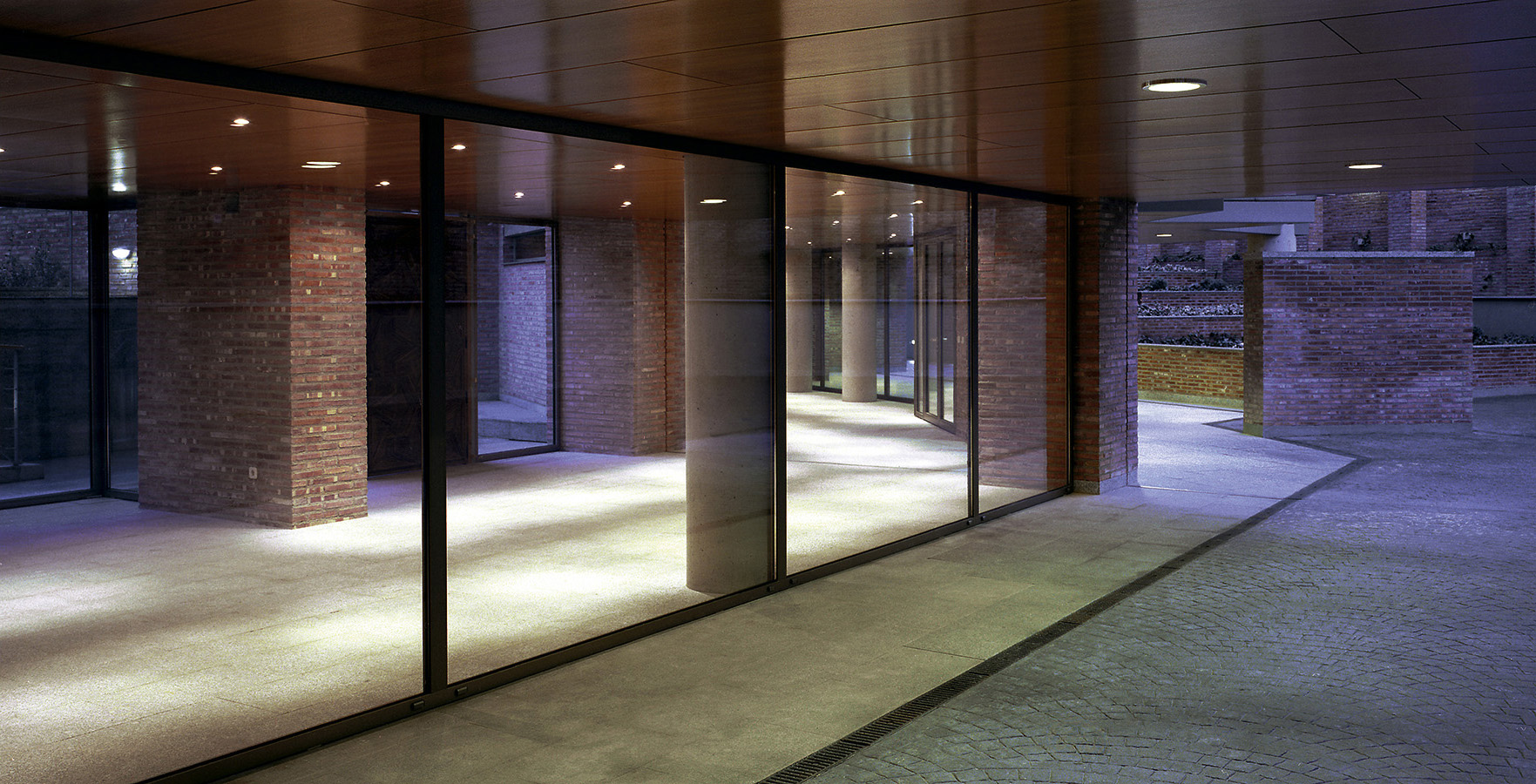

| Two blocks articulated an L-shape building, four flats per floor, all regarding best sunlight, views and ventilation. Four floors plus attic served by two stair shafts, connecting underground car-parks and the free ground-floor lobby, where garden and back interior-street flows as continuous open space. | ||

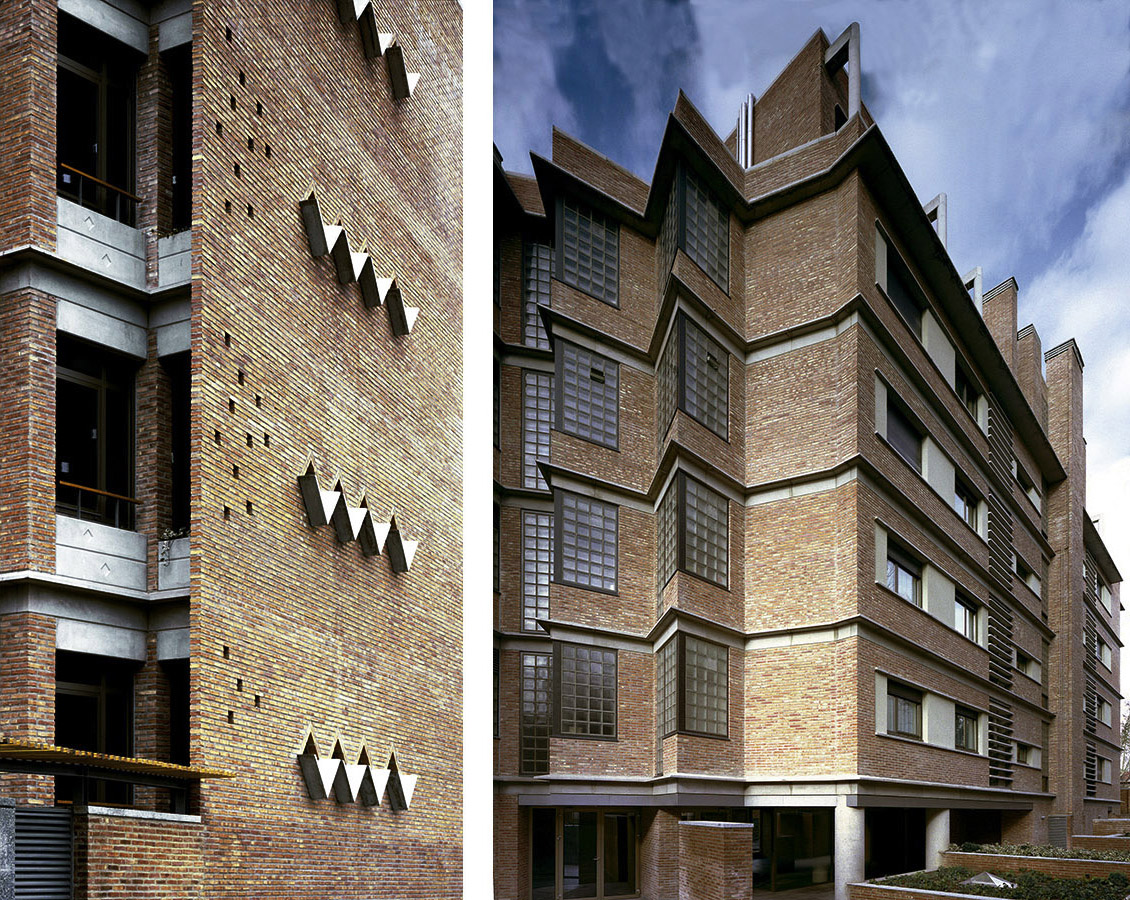

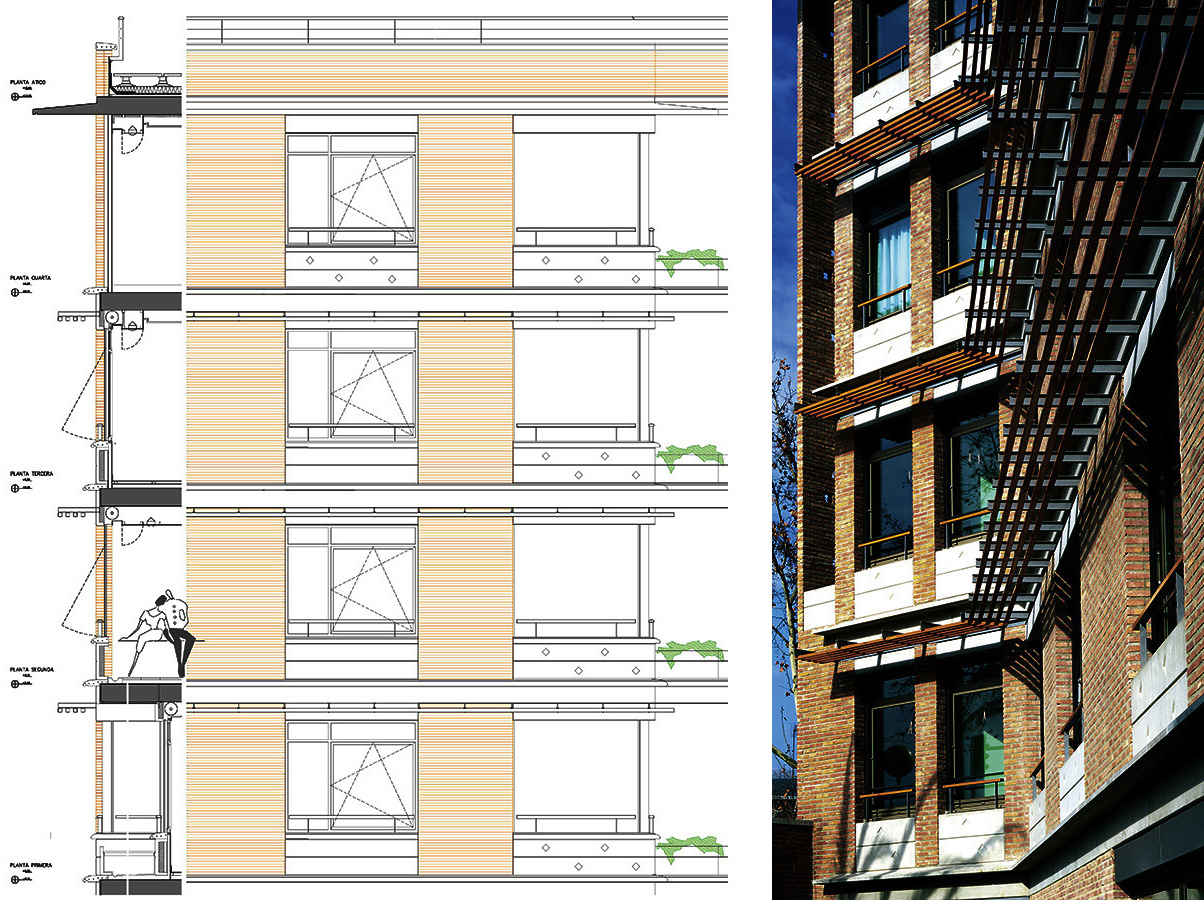

| Hand-made brick has being used as the main skin material of a complex façade wall, where specially designed precast concrete pieces solve joineries, corners, slab edges, rain guards, gallery protections, jambs o slats, propose an expressionist and powerful image consistent with its urban presence. | ||
