37 units Detached Houses
  Tres Cantos - Madrid - 2013

  Architecture:
  Ignacio Lliso / Julián Manzano-Monís

  Competition 2013

  Client: DARJAEL, S.L.
  Consultoría y Gestión Inmobiliaria

  Situación: Location ..... google maps
  Parcela RU-5 - Sector "AR Nuevo Tres Cantos"
  Tres Cantos - Madrid
  Colaboradores: Assistants
  Ángel Manuel Huélamo

  Requirements posed by the Promoter:

    Project linked to marketing stages and commercial strategy.

    No Common Areas in urbanization.

    Economic construction system.

    Flexible housing typologies.

  In order to optimize the proposed objectives, the following decisions were posed:

    Reduce the house units (37 instead of 40) improving livability, spatial quality and formal result.

    Design six groups of houses to achieve a 2/3 phases promotion development, adaptable to market requirements.

    Optimize width housing to the commercial selling surfaces.

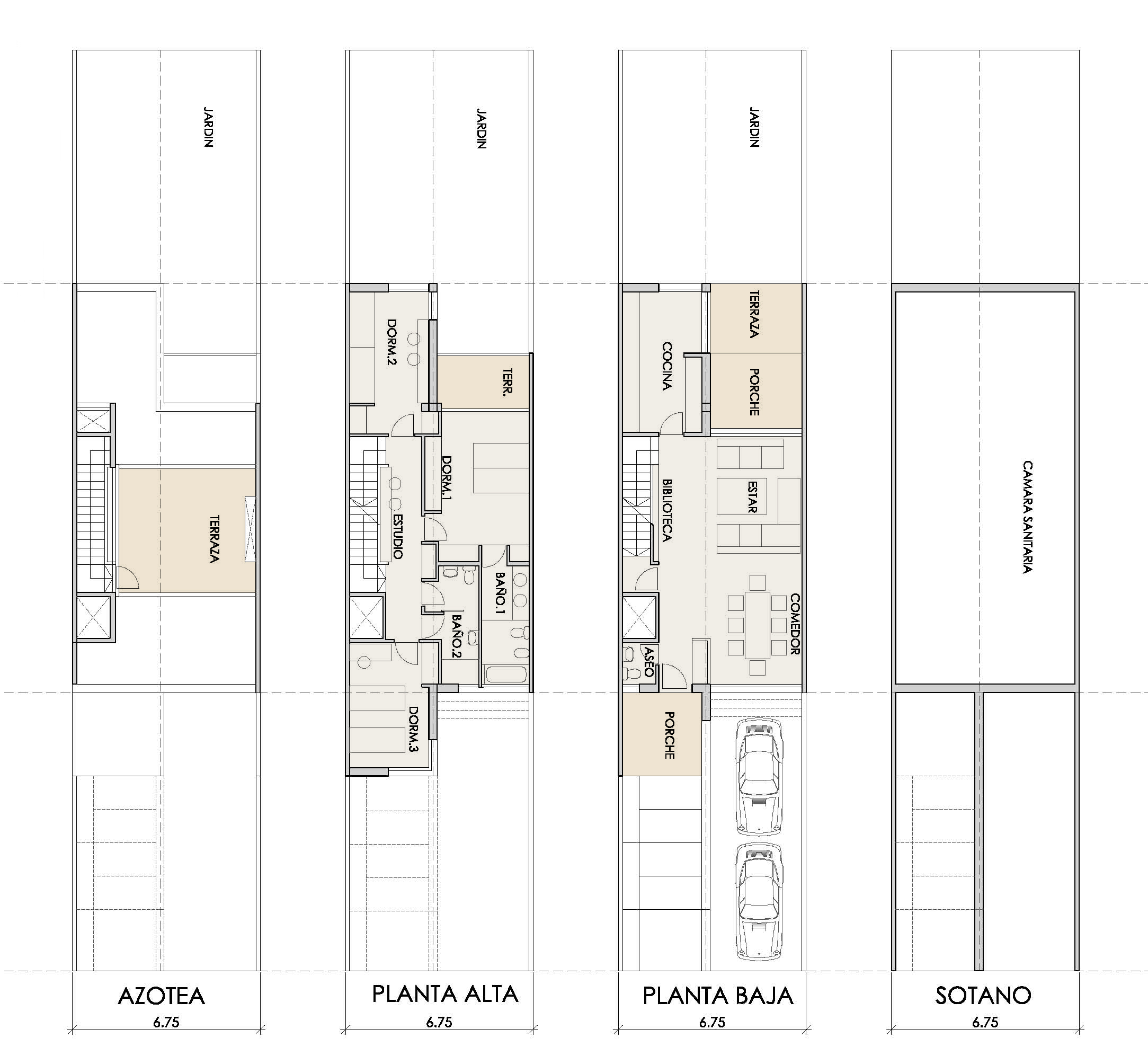

  A single housing typology  with flexible distribution scheme, in order to achieve the following objectives:

    Maximum amplitude and fluidity inside space, outside-inside relationship and potential views.

    Double orientation living-dining rooms adapted to optimum North/South orientation.

    Flexible internal distribution without significant constructive changes.

    Structural Simplicity.

    Non symmetrical housing solution placed on different platform levels for a  balanced protection in outdoor private spaces.

    "Set-backed" facade (10 m.) to provide front parking area or a ramp without raising the building for basement parking use.

    Accessibility access to ground floor and private garden.

    A reserved space for inside elevator is included.

    Deck level is used as an outer space.
